Make images clickable

In Ariadne, you can add clickable areas to images and link them to Ariadne content or external URLs – depending on where you want users to go.

Prerequisites

• You're in the edit mode of a page

Step 1: Upload image

Add your image to the page via drag and drop or by clicking Upload image.

Step 2: Open Image Map

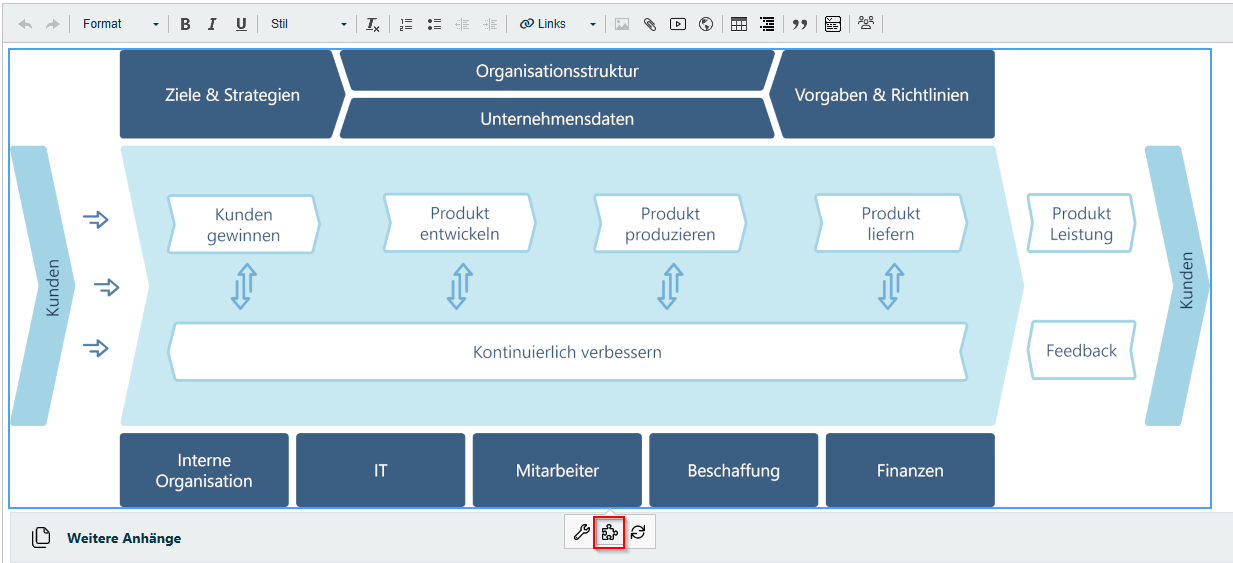

Click on the image and then click Insert/edit Image Map at the bottom edge of the image – it's the small puzzle-piece icon.

Step 3: Define clickable areas

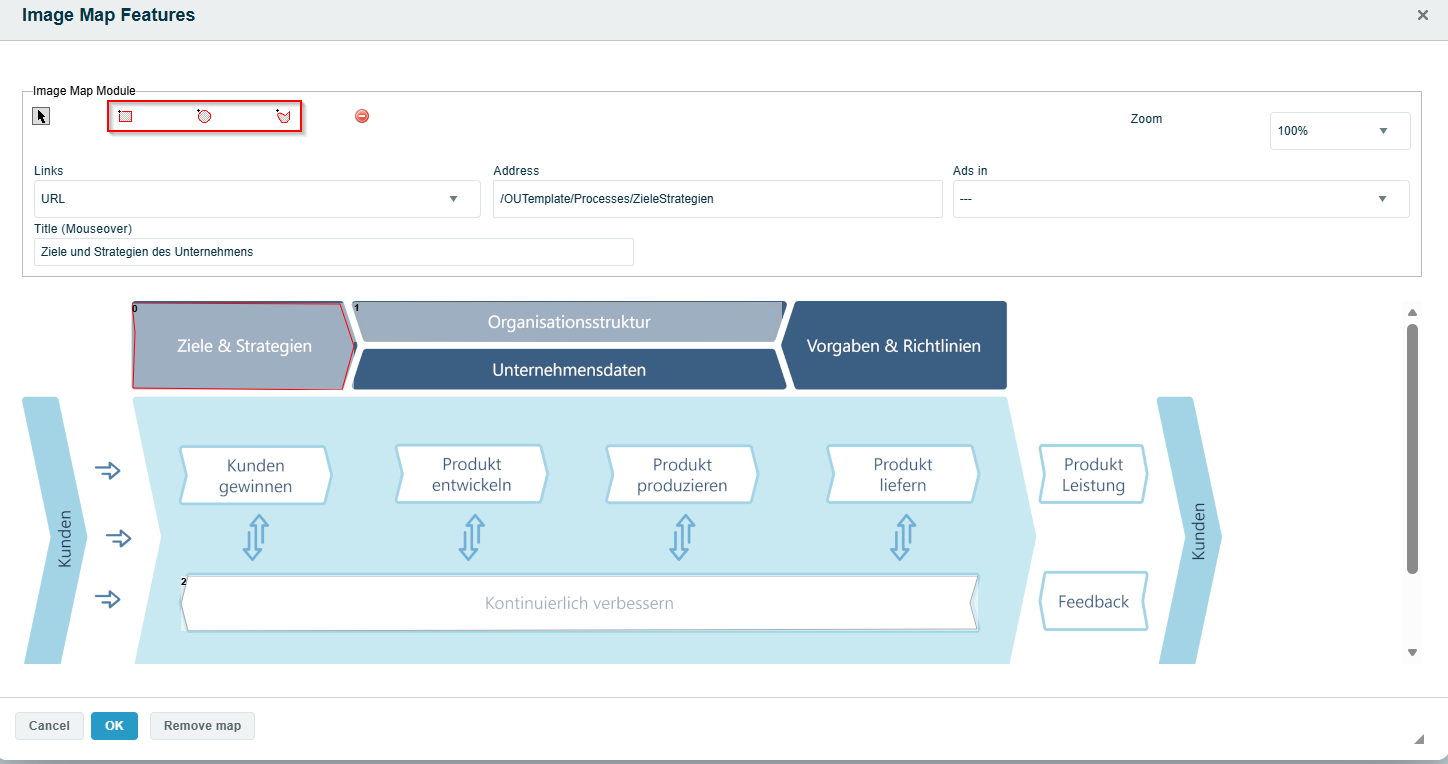

Choose a shape and draw the areas on the image that you want to make clickable. You can choose from three shapes:

• Rectangle: Two clicks for opposite corners
• Circle: Two clicks for center and radius
• Polygon: Each click sets a corner. Double-click or Shift + click to finish the shape

Step 4: Link the area

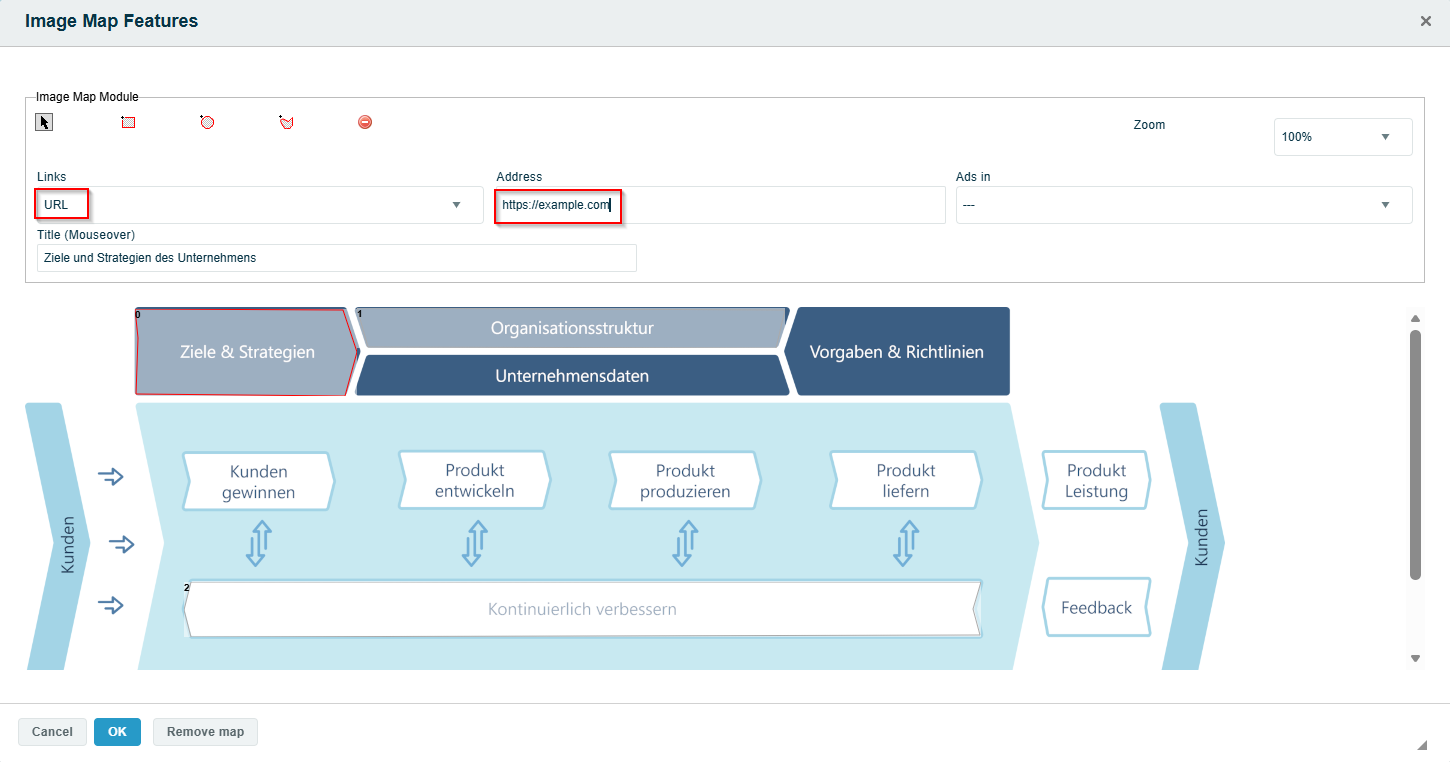

Option A: Link to an external URL

If users should click to an external link:

1. Select URL in the Links field
2. Copy the complete URL (e.g., https://example.com) and paste it into the Address field
3. The URL is recognized and ready to use immediately

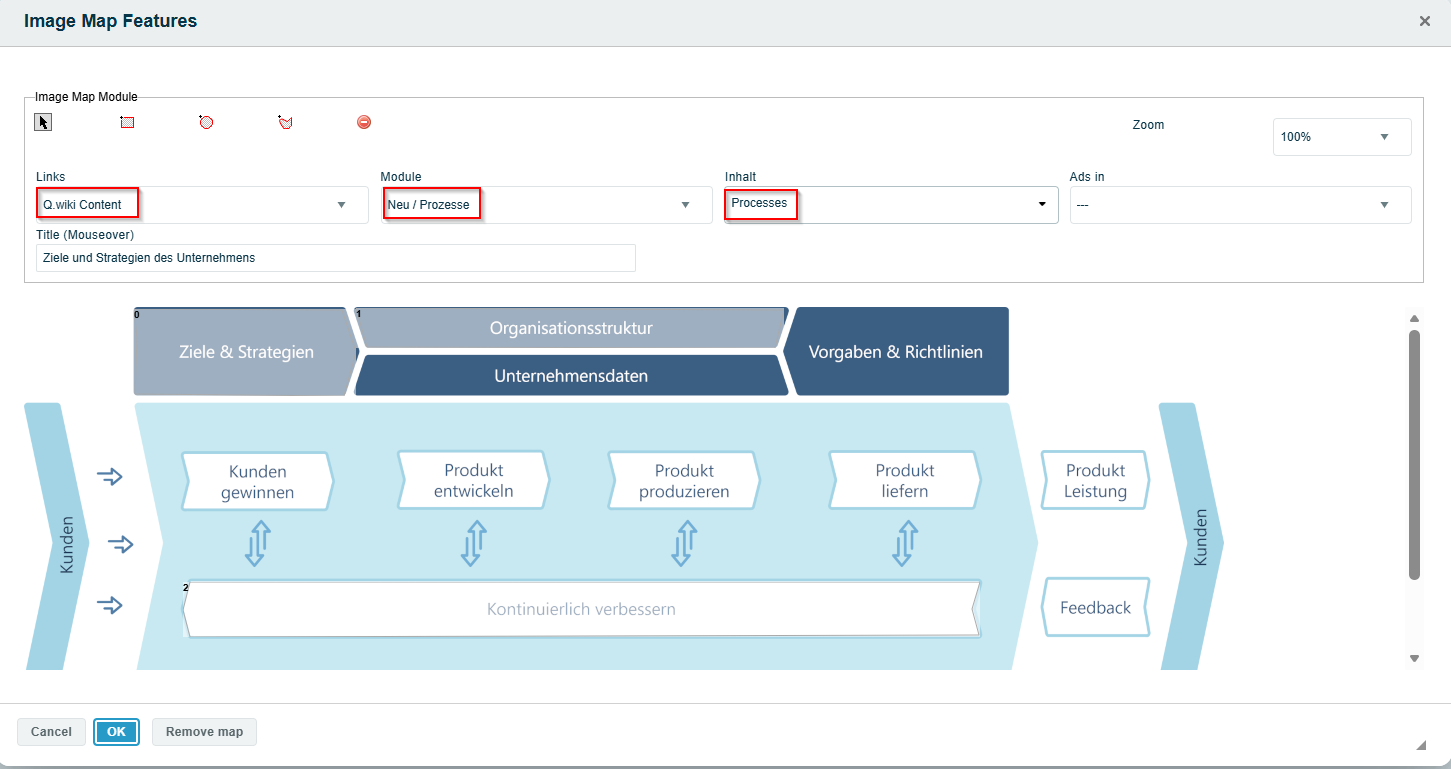

Option B: Link to Ariadne content

If users should navigate to an Ariadne page or module:

1. Select Ariadne content in the Links field
2. Choose the Module (e.g., Process overview, Work instruction, Form)
3. Search for and select the Content – you can find published pages and drafts
4. The link is saved automatically and remains valid, even after the page is published

Mouseover text (optional – both options)

Enter a title – this text appears when users hover over the clickable area with their mouse.

Open in (optional – both options)

In the Open in field, choose how the page or URL should open:

• This window: Opens in the same tab
• New window: Opens in a new tab
• Top window: Opens in the top window – relevant if Ariadne is embedded in a frame

Step 5: Add more areas

Repeat Step 3 and 4 for each additional area you want to make clickable.

Step 6: Save Image Map

Click OK to save all linked areas.

Result

Your image now has clickable areas. Users can click on the regions and navigate to Ariadne pages or external websites – depending on how you linked each area.
